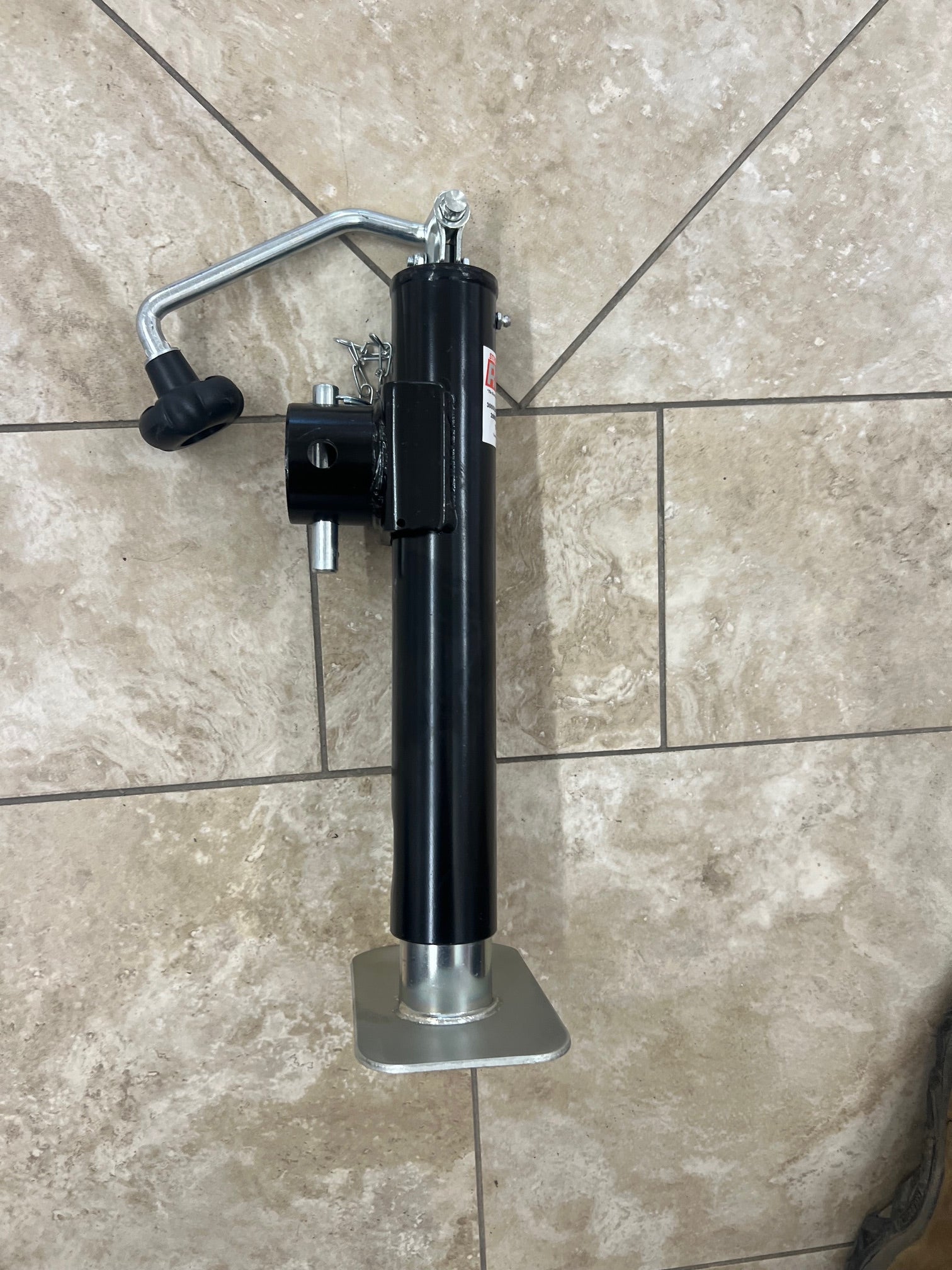

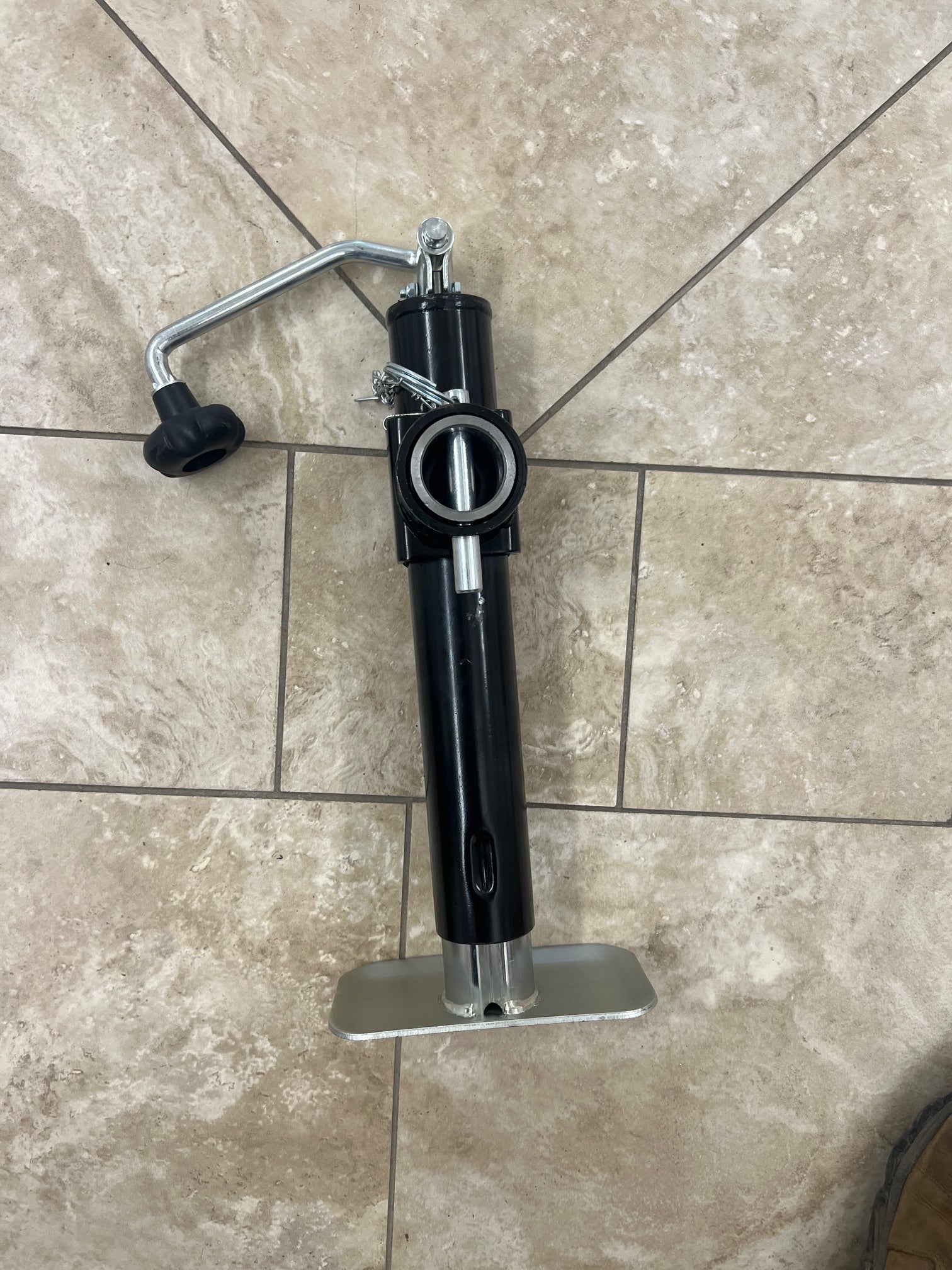

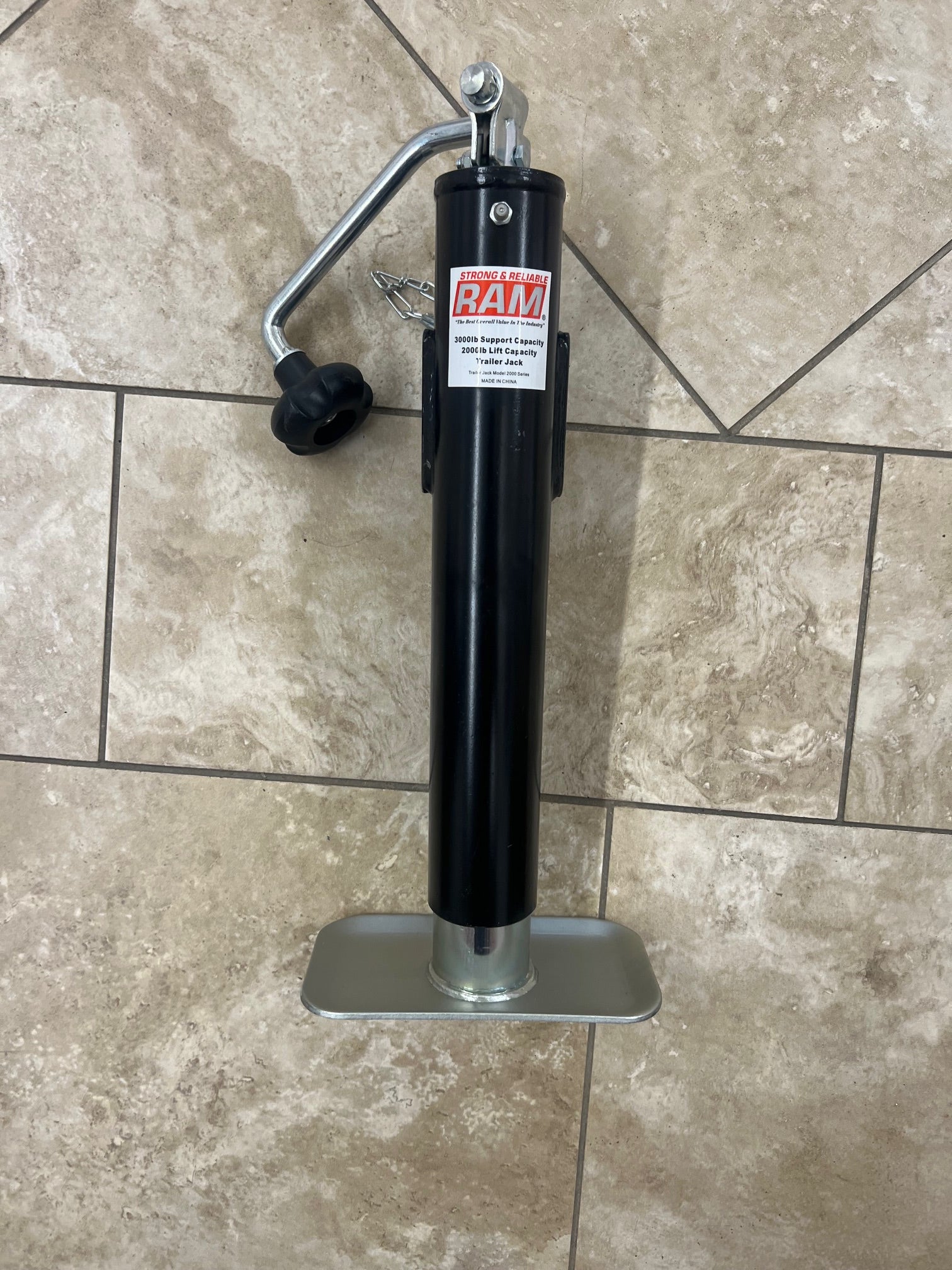

Round, Pipe Mount Swivel Jack w/ Footplate - Weld On - Zinc - Topwind - 10-3/4" Travel - 2K

Bracket Height

• Bracket height (from bottom of foot to center of pipe mount):
  • 11" Retracted
  • 21-3/4" Extended

Travel

• Travel: 10-3/4"

Tube Diameter

• Outer tube diameter: 2-1/4"
• Inner tube diameter: 2"

Footplate Dimensions

• Footplate dimensions: 7" long x 4" wide

Pipe Mount Diameter

• Pipe mount diameter:
  • Inner: 2"
  • Outer: 2-1/2"

Handle Radius

• Handle radius: 7"

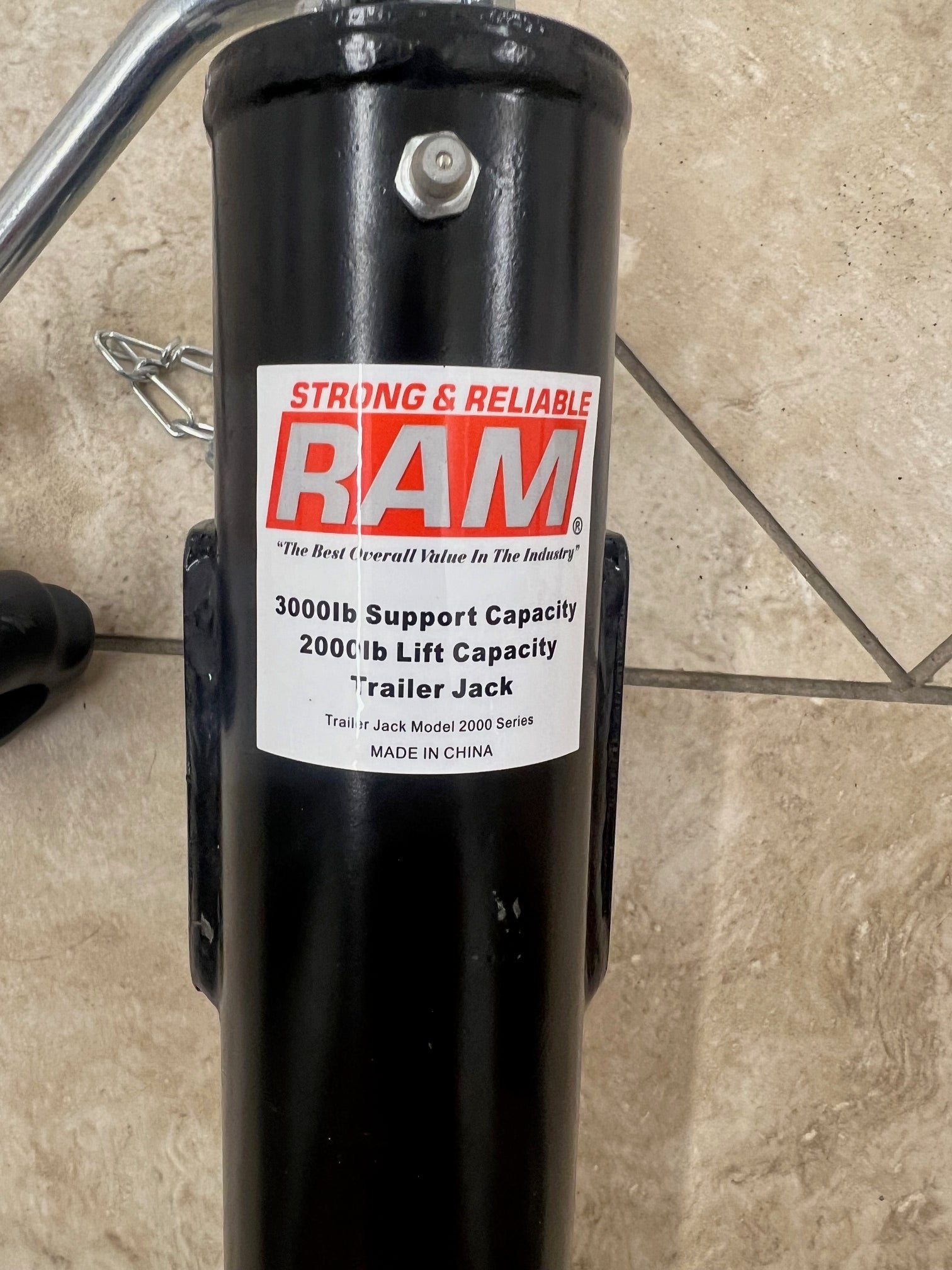

Capacity

• Lift capacity: 2,000 lbs
• Support capacity: 3,000 lbs
